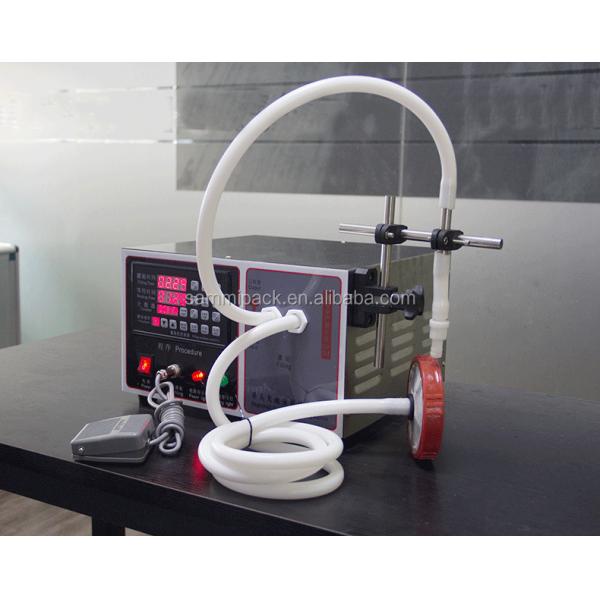

Food Grade Small Liquid Filling Machine Semi-automatic 304 Stainless Steel for Juice, Honey, Oil, Soda Water 17L/min

Name: Food Grade Small Liquid Filling Machine Semiautomatic 304 Stainless Steel for Juice Honey Oil Soda Water 17Lmin
Brand: SAMMIPACK
Price: 220 USD

China Food Grade Small Liquid Filling Machine Semi-automatic 304 Stainless Steel for Juice, Honey, Oil, Soda Water 17L/min factory

application : Food, Beverage, Commodity, Chemical

packaging type : Bottles, Stand-up Pouch, Bags, Pouch

packaging material : CARTON

automatic grade : Semi-automatic

driven type : Electric

Voltage : AC220V,50/60Hz

Place of Origin : Guangdong, China

Brand Name : SAMMIPACK

dimension(l*w*h) : 36*35*22CM

warranty : 1 Year

key selling points : Long Service Life

filling material : Water, Oil, Juice

filling accuracy : 1g

machinery test report : Provided

video outgoing-inspection : Provided

core components : motor

After-sales Service Provided : Video technical support

Weight (KG) : 13

Filling Volume : 100ML, 200Ml, 300ML, 400ML, 1L, 2000ml, 500ML

Material : SS304

Filling Range : 5ml-unlimited filling (adjustable)

Max Flow Rate : 17L/min

Max Suck Distance : 2meter

MOQ : 1SET

Package : carton

MOQ : 1 set

Price : $220-260 / set

Contact Now

GFK-170 Fast Speed Magnetic Pump Liquid Filling Machine

Product Description

Product Description

New Style Magnetic Pump Liquid Filling Machine

Controled by micro-computer, easy convenient to control system,can automatic set volume.

Filling Liquid From 30ml-17L very precisely.

Filling accuracy reach to 0.01s.

Digital Panel, very easy to operate.

Principle and Characteristics:

1,It is drived by magnetic power, the pump head and the motor is connected without shaft,no need worry about the burnout of the motor because of the high load of the pump.

2,Pump head and motor is imported from Germany, other components are produced in Taiwan, Stable performance, life time is long.

3,Pumper head is made from stainless steel, acid alkaline, corrosion-resistant.

4,The motor run is adjusted by potentiometer, the degree of accuracy of filling time can be lower to 0.01 second, so that can guarantee the filling accurately,the filling error is less than 0.5%. Filling volume is from 50ml-17L fillin.

5,Fully functional, can be operated by hand, foot pedal filling, automatic filling. Interval time can be adjusted.

6,Widely applied in various industrious, almost can be used for filling any flow liquid, especially suitable for oil, acid and alkali, high corrosive liquid filling.

Technical data

Specifications :

Model	GFK-170
Filling Range	50ml-17000ml filling (adjustable)
Voltage	AC220V 50/60Hz
Max Power Rate	180W
Mainframe Size	360350220mm
Mainframe Weight	22kg
Precision	±0.5%
Max Flowing Rate	>17L/min
Bottle height	Limitless
Pump Quantity	1

Detail show

Pictures :

Pictures of samples:

Company Profile

Workshop Show

Certifications

Payment & Shipping

Packaging & Shipping

Packing&Shipping

1, Trade Term of product

MOQ	1 set
Supplier Ability	300set/week
Payment Term	T/T, L/C, Western Union, PayPal, Secure Pay
Package	wooden box, cartons, honeycomb paperboard box
Delivery Term	FOB, EXW,CIF, Express delivery
Port	Shenzhen
Delivery Time	1-3 days after payment
Shipping Time	A, by express:about 5 days to arrive
	B, by air: about 5 days to destination airport
	C, by sea:15-30 days to destination port
